Full Automatic PS Foam Sheet Extrusion Line With Intelligent System

Full Automatic PS Foam Sheet Extruding Machine For Fast Food Box Forming Machine

Fast food box machine mainly includes 3 parts:
1. PS Foam Sheet Extrusion Line
2. Automatic Vacuum Forming and Cutting Machine
3. Crusher and Recycle Machine
This line is the whole production line, which can form lunch box from raw material. This is the recycle. The work flow is as follows: raw material---(ps foam sheet extrusion line)---foam sheet---(lunch box forming machine and cutting machine)---lunch box---(plastic recycle machine)---plastic granulars( this part can be used as raw material)----foam sheet.

Product Description

PS Foam Sheet Extrusion Line adopts Gentian type double-stage series high foam technology. The raw material is general polystyrene granule. In the extruding process, vesicant is injected at high pressure. After extruding, foaming, cooling, shaping and hauling off, it is winding to finished PS foam sheet rolls. After vacuum forming system, the finished PS foaming sheet can be made into variety of packaging vessels such as fast food box ,aquatic plate, supermarket tray ,cake tray , KT board ,instant noodle bowl ,foam tray etc. It is widely used in the packing for food, fruit, and advertising industrial products and so on. This equipment adopts high speed hydraulic filter changer which has steady feature, can realize change the filter immediately without stopping the machine. The foaming shaping machine adopts PLC control, touch screen operation, easily to operate.

Application

1- Fruit, vegetable and raw meat pallets ;Food industry and fast (to-go) packages ;And egg crates .

2- Food container ,bowls ,trays and other tableware

3- Education materials ;decorative materials

4- Isolation materials for contraction (wallpaper ,padding and ceiling panels)

5- Polysterene containers keep food warm or cold so they are perfect for serving both hot meals and ice cream

6- Polystyrene is print-ready ,easy to fold ,water and bacteria resistant ,and a great insulator .

Flow chart

Fully auto forming and cutting machine

This forming and cutting incorporated machine designed by our company is all-powerful. The main way is vacuum forming as well as press forming and synthetical forming. It can be used for forming kinds of plastic sheet. This machine adopt PLC control, it has group possesses reliable stability, large forming area, high production and automatic degree. The machine can mainly forming the PSP material which is used to produce food container, tray, bowl, cup etc. Forming, cutting, stacking are done in the same machine, saving labor, improving efficient, lowing labor intensity and reducing production cost. Production process is to put foam sheet into forming machine, and product and wastage will come out from the rear part.

1. It is an all-powerful thermal forming machine with integration of vacuum forming and cutting.
2. It can produce PS foam food box/container, foam (egg/meat) tray, hamburger box, foam plates/bowl, fruit tray, etc. The foam container has feature of shock-resistance, crush- resistance, heat insulation, etc. It is widely used to pack the heat and frozen food in supermarket, store and etc.
3. It adopts remote infrared ceramic heater in heating zone, with which the machine get the most stable and even temperature.
4. It adopts temperature digital system, which is convenient for the workers to know the temperature of each heating zone quickly. Also it is easily operate and make more efficiency.
5. It adopts Japanese servo motor & drive, Mitsubishi PLC mechanical and electronic integration control, touch screen for operating.
6. It features reliable stability, large forming area and fast speed,as well as highly degree of automation & economic on manpower.
7. It adopts automatic pneumatic device in feeding area, which reduces the labor force.

Pe Foam Sheet Extruder

Foam Production Line

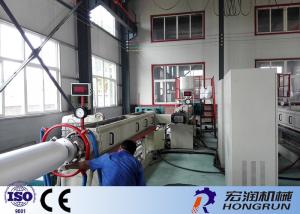

Full Automatic PS Foam Sheet Extrusion Line With Intelligent System Images
